ATG9A Recombinant Rabbit Monoclonal Antibody [SC67-05]

☑ Knockout (KO)

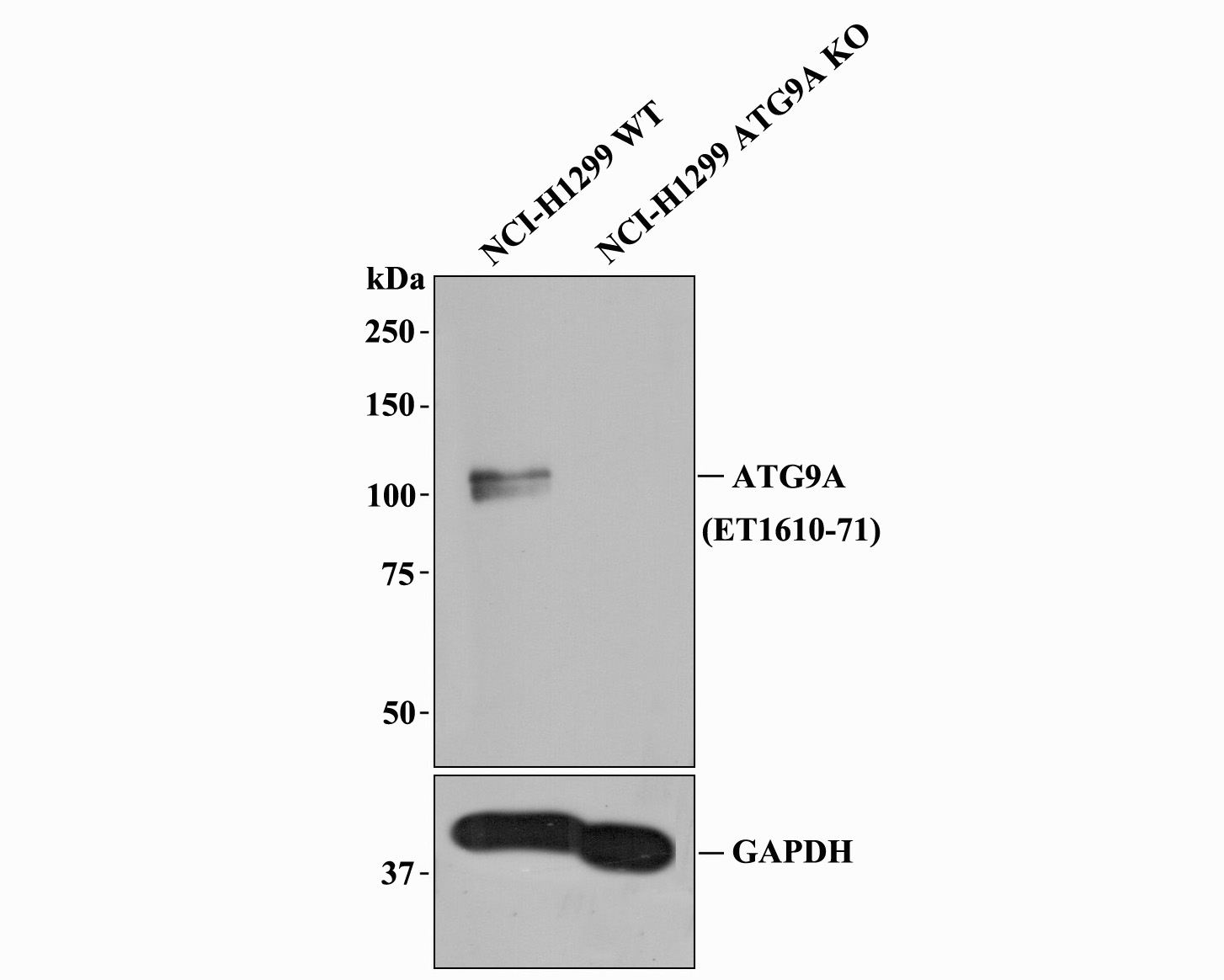

All lanes: Western blot analysis of ATG9A with anti-ATG9A antibody [SC67-05] (ET1610-71) at 1:1,000 dilution.
Lane 1: Wild-type NCI-H1299 whole cell lysate (20 µg).
Lane 2: ATG9A knockout NCI-H1299 whole cell lysate (20 µg).

ET1610-71 was shown to specifically react with ATG9A in wild-type NCI-H1299 cells. No band was observed when ATG9A knockout sample was tested. Wild-type and ATG9A knockout samples were subjected to SDS-PAGE. Proteins were transferred to a PVDF membrane and blocked with 5% NFDM in TBST for 1 hour at room temperature. The primary antibody (ET1610-71, 1/1,000) and Loading control antibody (Rabbit anti-GAPDH , ET1601-4, 1/10,000) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG-HRP Secondary Antibody (HA1001) at 1:200,000 dilution was used for 1 hour at room temperature.

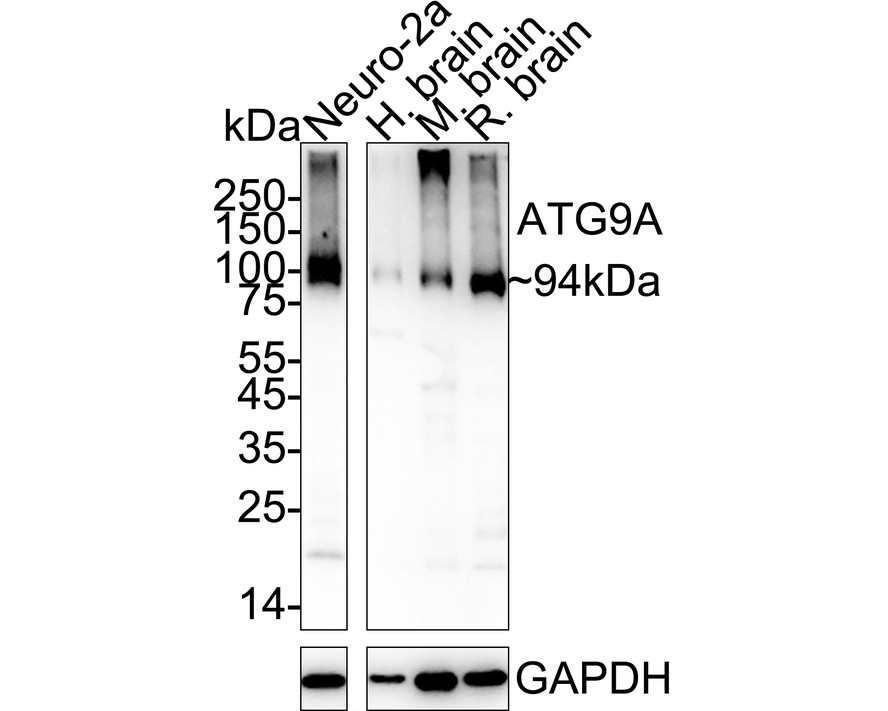

Western blot analysis of ATG9A on different lysates with Rabbit anti-ATG9A antibody (ET1610-71) at 1/1,000 dilution.

Lane 1: Neuro-2a cell lysate
Lane 2: Human brain tissue lysate
Lane 3: Mouse brain tissue lysate
Lane 4: Rat brain tissue lysate

Lysates/proteins at 20 µg/Lane.

Predicted band size: 94 kDa
Observed band size: 94 kDa

Exposure time: 20 seconds; ECL: K1802;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (ET1610-71) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

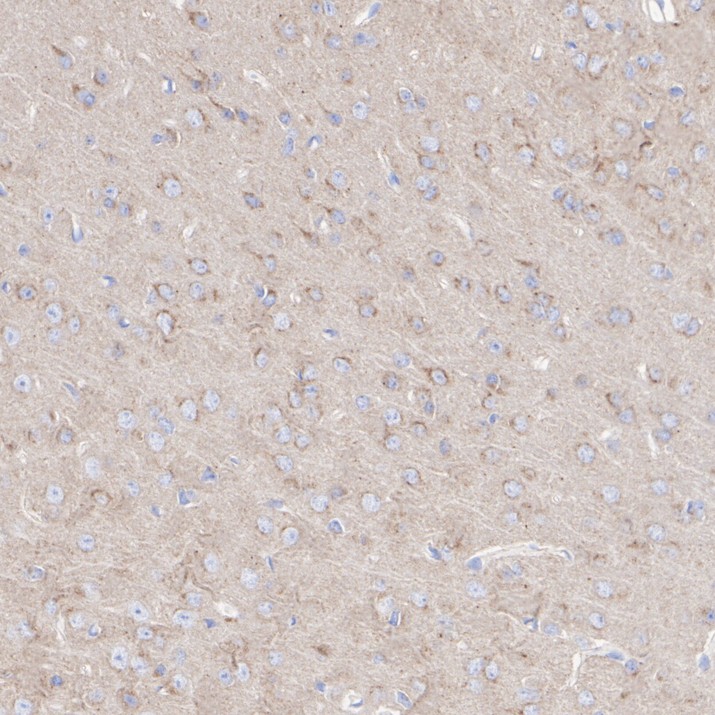

Immunohistochemical analysis of paraffin-embedded mouse brain tissue with Rabbit anti-ATG9A antibody (ET1610-71) at 1/200 dilution.

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (ET1610-71) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

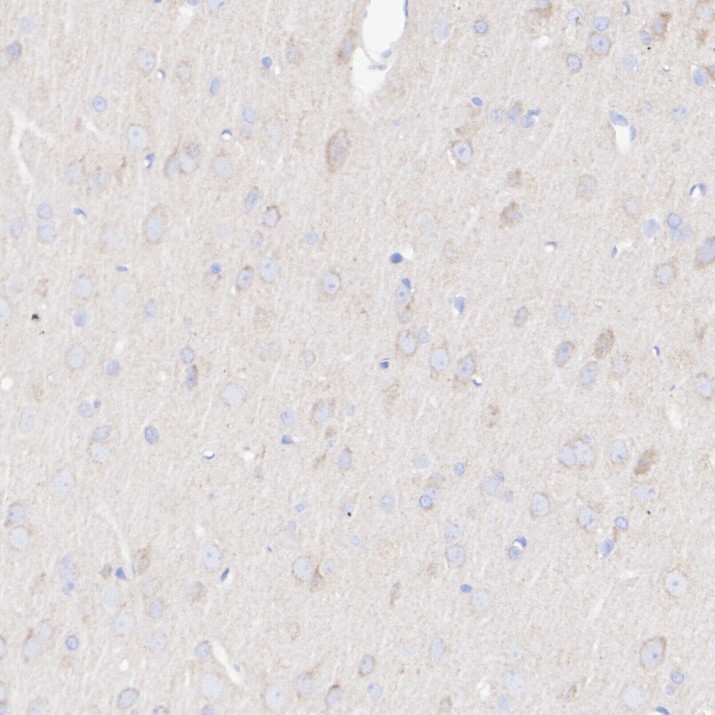

Immunohistochemical analysis of paraffin-embedded rat brain tissue with Rabbit anti-ATG9A antibody (ET1610-71) at 1/200 dilution.

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH₂O and PBS, and then probed with the primary antibody (ET1610-71) at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
